Repairing Damaged Rockers After a Timing Belt Failure in a BT-50
- Vehicle: Mazda BT-50
- Customer Concern: Sudden loss of power followed by engine failure while driving
- Diagnosis: Timing belt failure causing internal valve train damage
- Repair Type: Cylinder head and rocker assembly repair
The Problem
The customer reported that their BT-50 stalled without warning and would not restart. The engine cranked but sounded uneven, a classic sign of possible internal damage. Given the vehicle’s service history and symptoms, a failed timing belt was suspected straight away.
After removing the timing cover, we confirmed the belt had snapped. On this engine, the timing belt keeps the camshaft and crankshaft synchronised. When it fails, the pistons and valves are no longer timed correctly, which can lead to contact between them.
Inspection & Diagnosis
With the cylinder head removed, further inspection revealed:

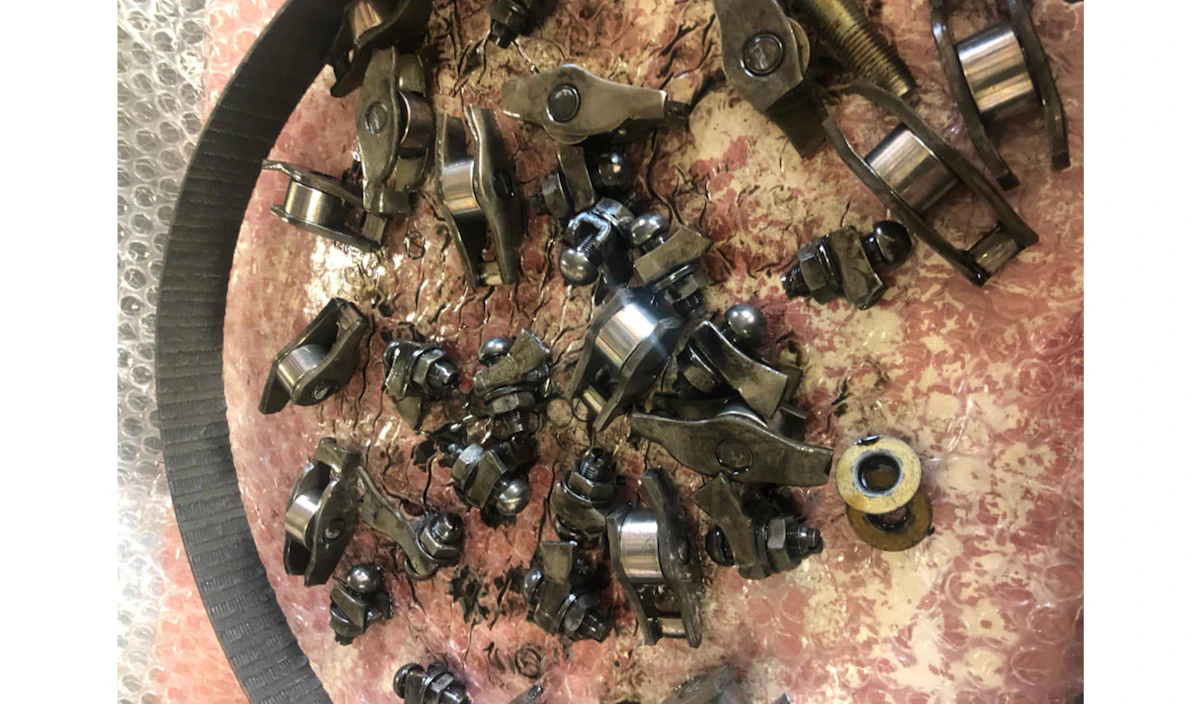

- The majority of the rocker arms were bent or broken
- Valve timing was severely out of alignment
- No visible piston damage, but valve movement was restricted
- The camshaft and lifters showed uneven loading due to the sudden stop
This type of damage occurs because when the belt fails, the camshaft stops turning while the crankshaft continues briefly, forcing valves to remain open and loading the rockers beyond their design limits.
The Repair
To restore the engine safely and reliably, we carried out the following work:
- Removed and replaced all damaged rocker arms
- Inspected and tested valves for straightness and sealing
- Checked camshaft lobes and followers for abnormal wear
- Installed a new timing belt kit with correct tension and alignment
- Reassembled the cylinder head with new gaskets and seals
- Set valve clearances to factory specification
- Performed full timing and compression tests after reassembly
Once completed, the engine was rotated by hand to confirm smooth operation before starting.
The Result
After repair:
- The engine started cleanly with no abnormal noise
- Compression returned to normal across all cylinders
- Idle quality and throttle response were fully restored
- No fault codes or warning lights were present
The customer avoided a full engine replacement thanks to early diagnosis and the fact that damage was limited mainly to the rocker assembly.
Lessons from This Repair
This case highlights why timing belt maintenance is critical. A worn or overdue belt can fail without warning and cause thousands of dollars in damage in seconds. Rocker arms are often the first components to fail because they act as a mechanical “weak point” when valves are forced out of time.
Regular timing belt replacement according to manufacturer intervals can prevent:
- Bent or broken rockers
- Valve damage
- Costly head or engine rebuilds
- Sudden breakdowns
The Final Takeaway
The timing belt failure on this Mazda BT-50 resulted in damaged rockers and loss of valve control. Through careful inspection and targeted repairs, the engine was restored without needing full replacement. This case reinforces the importance of scheduled servicing and early diagnosis when unusual engine behaviour occurs.
